R635-3W, G525-3W, B445-4W
Rated Voltage: AC100~240V 50/60Hz; 600W
Scanner: 40kpps fast scanning system, scan angle:±30°;Input signal:±5V;Linearity distortion<2%
Modulation:analog
Beam diameter and divergence:6*6.5mm;1.5mrad
Control mode: sound, auto, master-slave, DMX512(52CH), SD card, ILDA
Control Interface: international standard DMX 512,ILDA standard DB25 connector（Pangolin (USA), moncha, etc.)
Demonstration effect: built-in 160 pattern,SD card unlimited storage.
DMX effect: double pattern mode,and with the function of unique blanking,strobe, rotation, movement, zoom, write in,speed and color etc.
Control technology: ①RDM data bidirectional transmission ② SD card online upgrade ③temperature control system ④DMX512 upgrade
Operating requirement: dry, less dust, 0~35℃(environmental temperature),will reduce the attenuation of the diode and extend the life of the light.

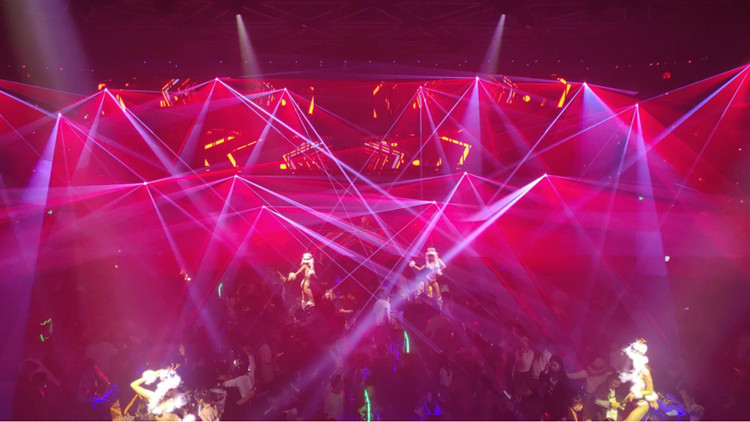

Application: disco, club, medium indoor venue, theatre, etc.
Size: 60*43*37cm N.W./G.W: 23/28kg
